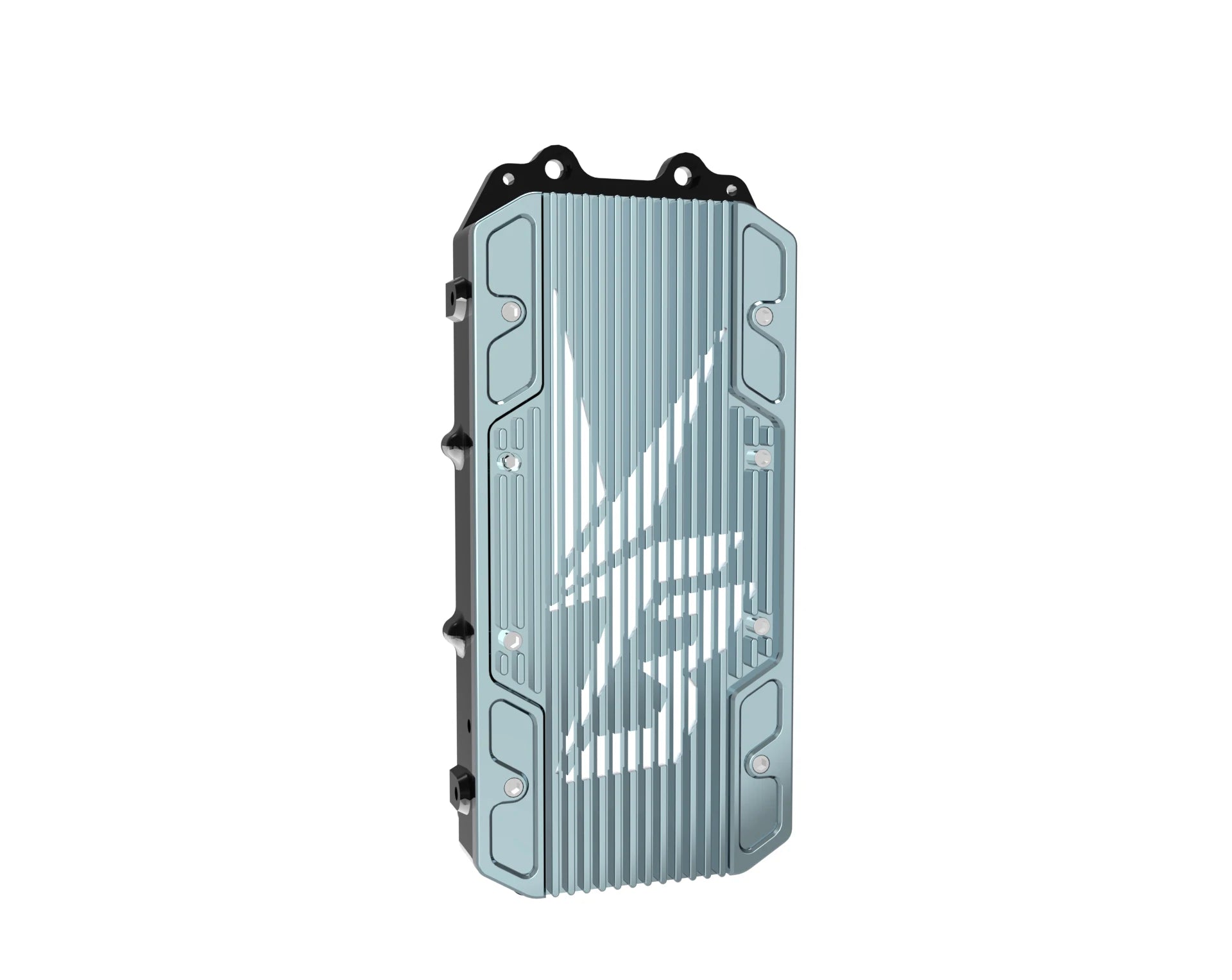

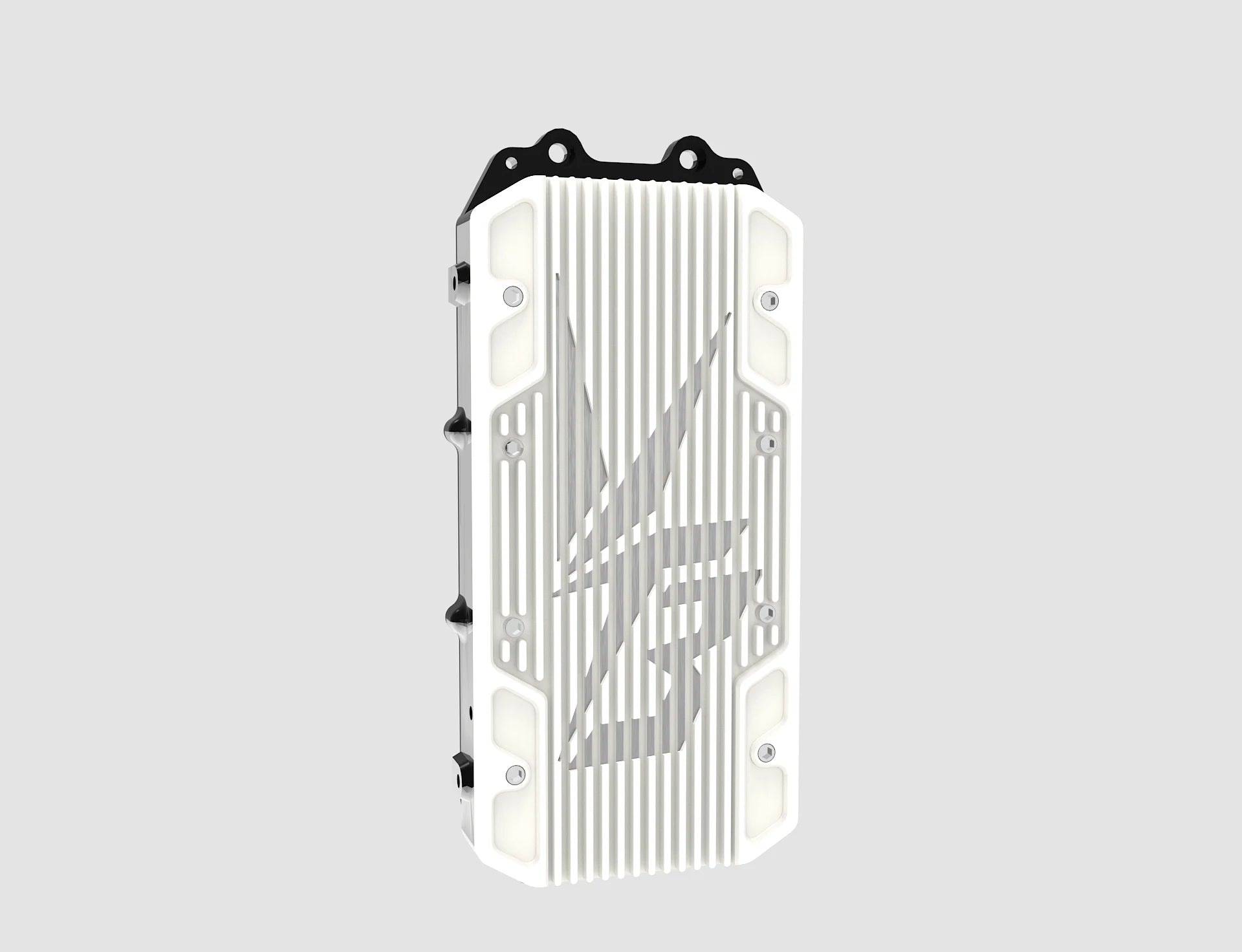

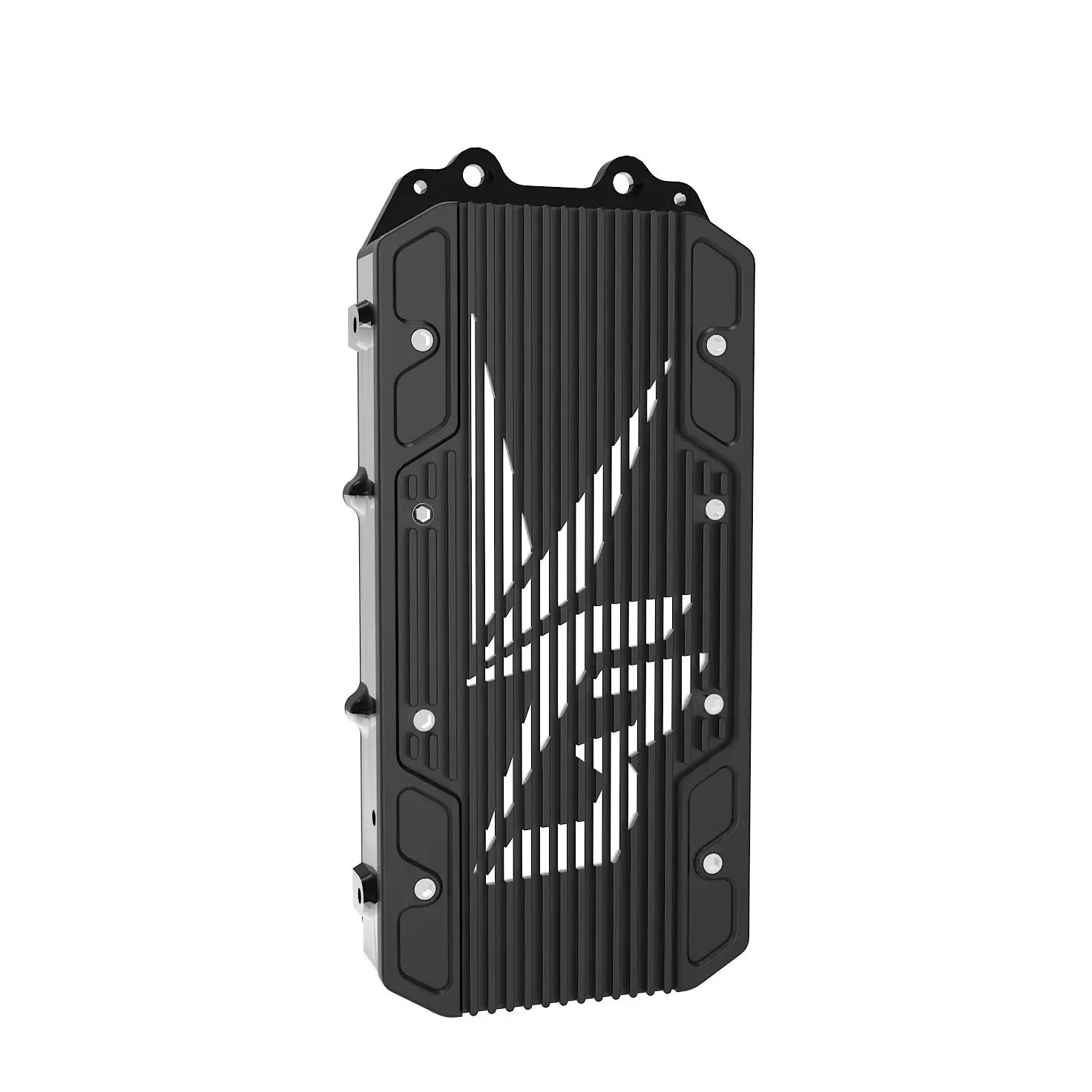

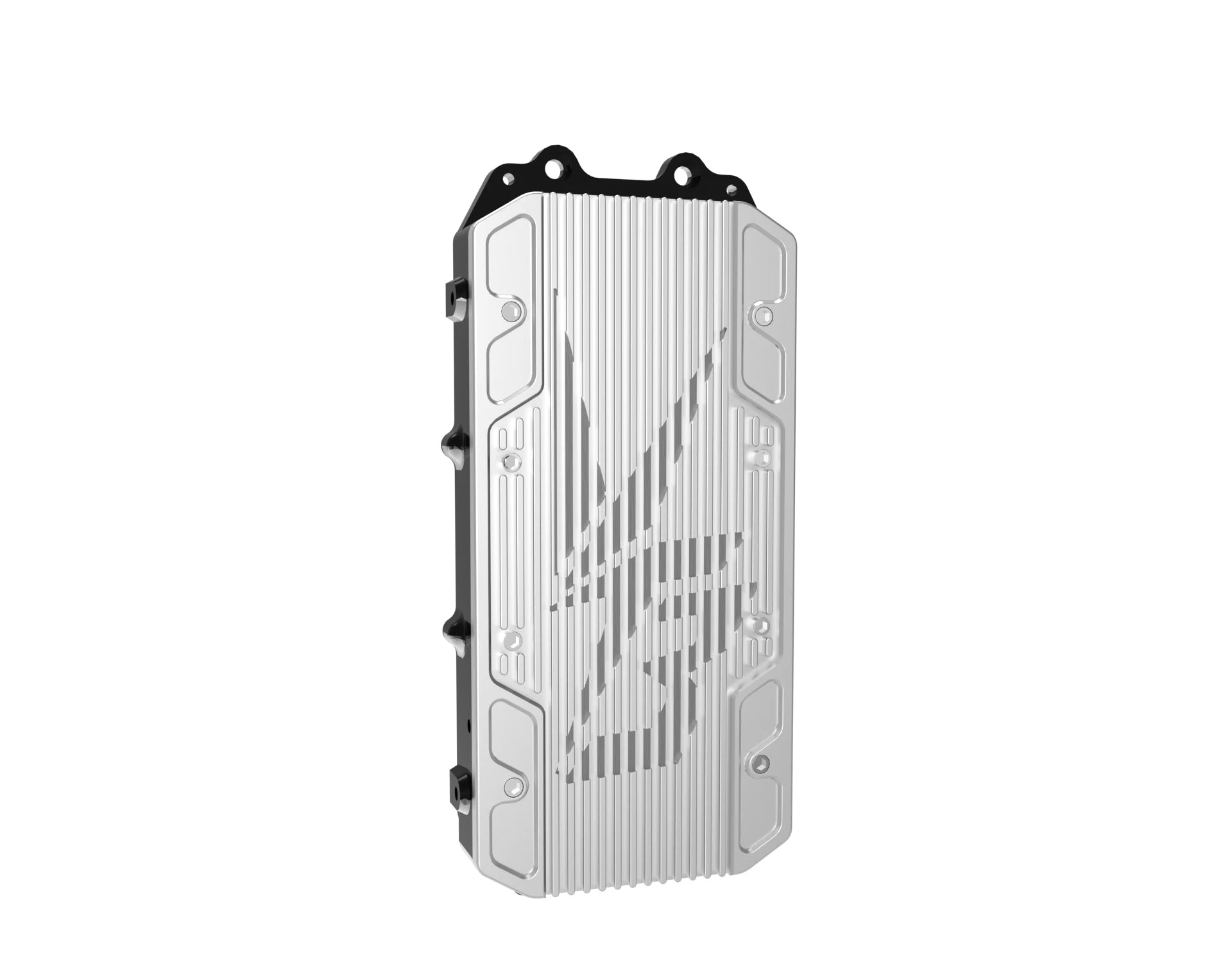

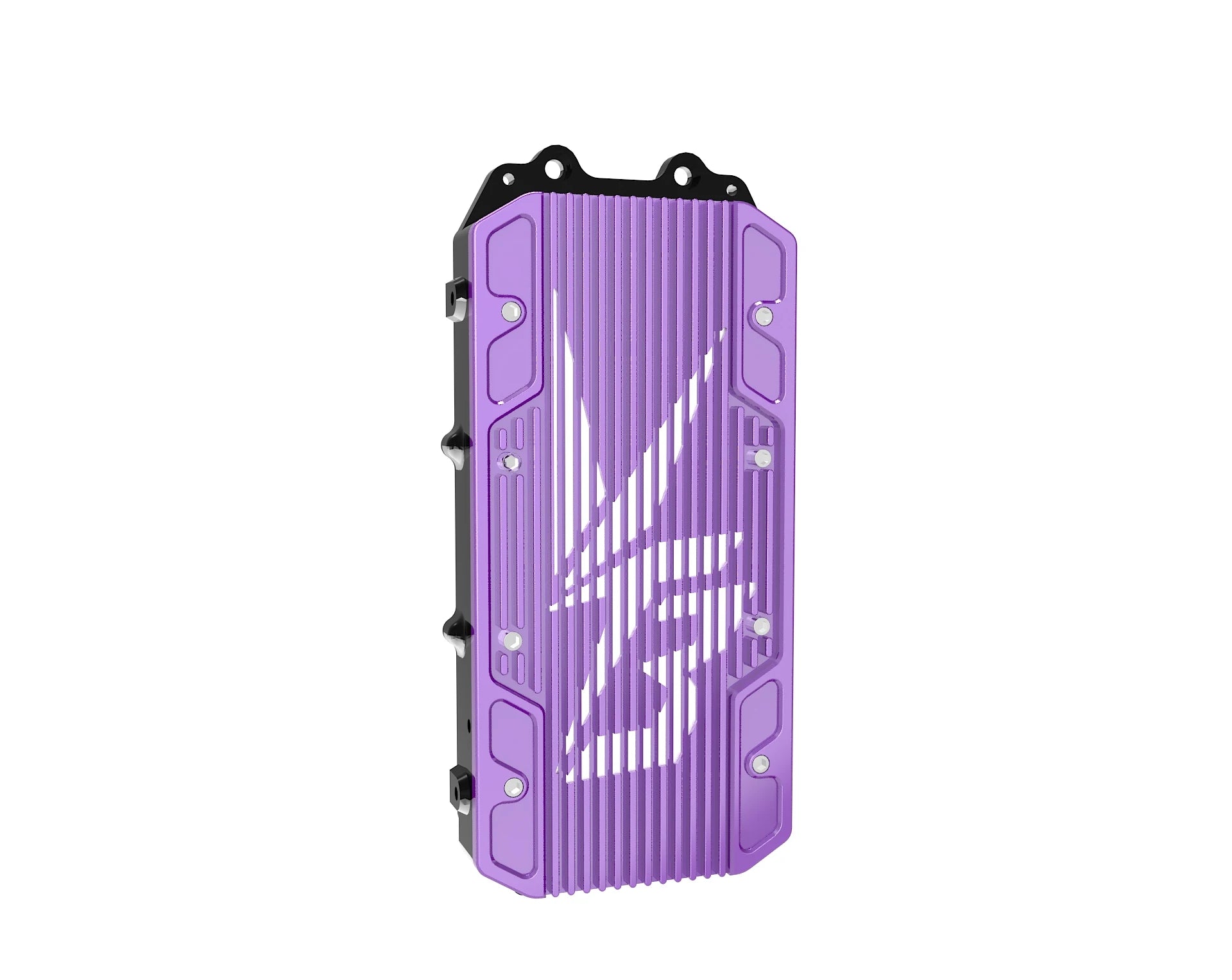

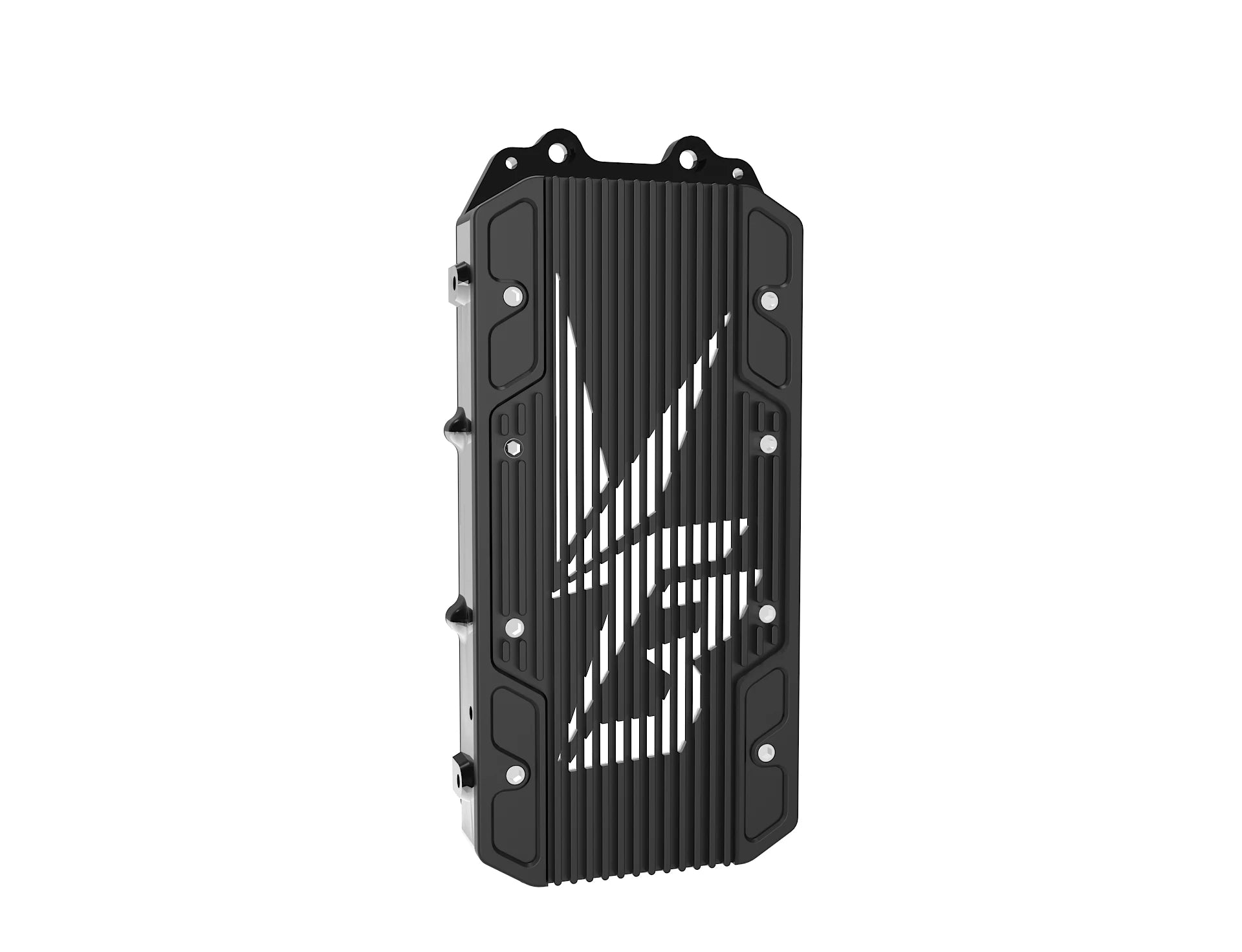

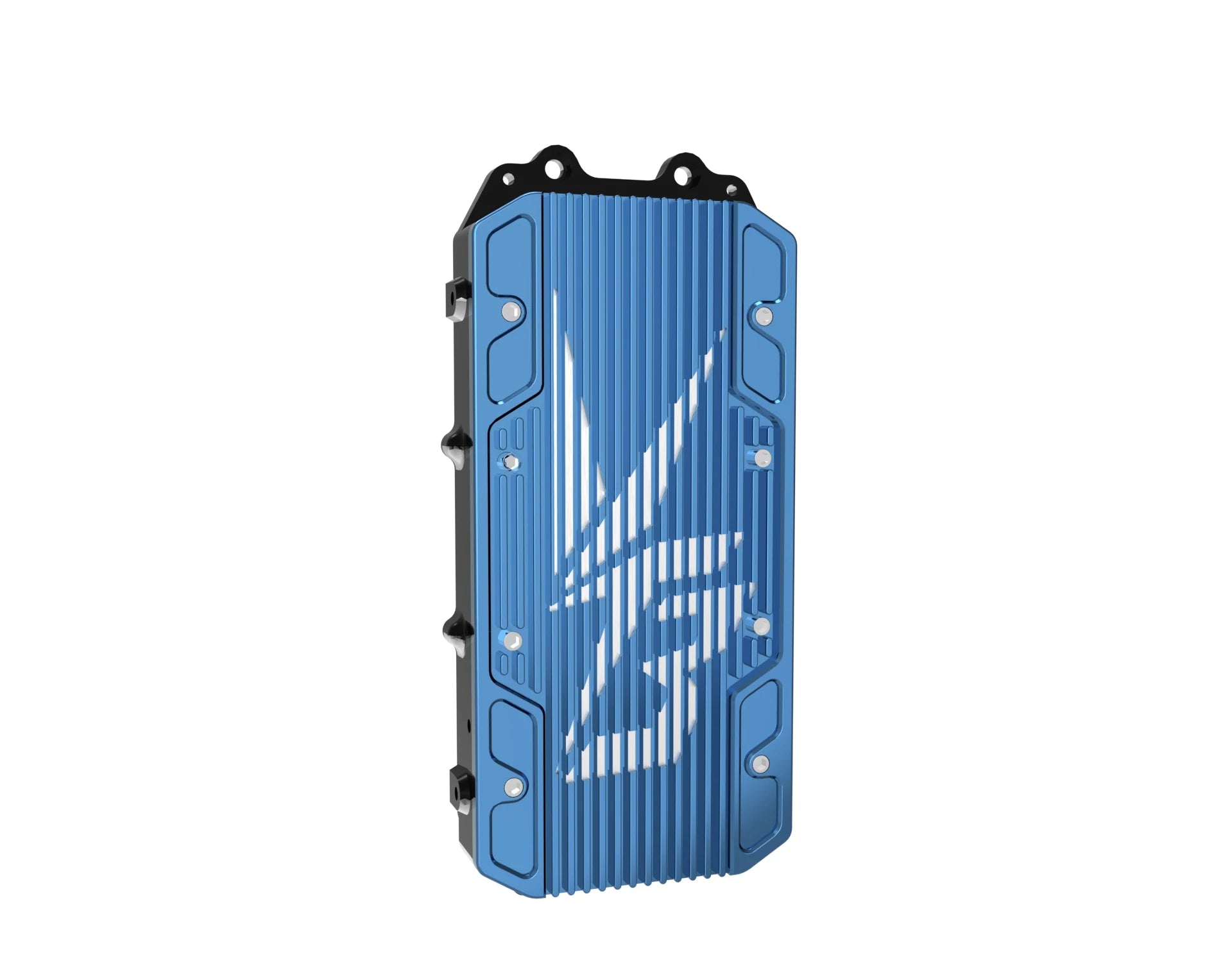

Ventus Aetos VTB V9600 Gen 2 MAX Controller
Take your eMoto to the next level with the Ventus Aetos VTB V9600 Gen 2 MAX Controller – one of the most powerful and advanced controllers available for Sur-Ron, Talaria, E-Ride Pro, 79Bike, and other high-performance electric motorcycles.
Designed for riders who demand maximum power, instant throttle response, and complete tuning control, the Aetos MAX delivers up to 76kW of peak power while maintaining smooth and predictable performance through advanced VESC-based FOC technology. Whether you're building a race bike, wheelie machine, or high-voltage street setup, the V9600 MAX provides the performance headroom needed for extreme builds.
Key Features
-
Up to 76kW Peak Power
-
Supports 72V–96V Battery Systems
-
Up to 960A Phase Current (1300A tested)
-
VESC-Based FOC Sinusoidal Control
-
Bluetooth Mobile App Tuning (iOS & Android)
-
5 Programmable Ride Modes
-
5 Levels of Regenerative Braking
-
Adjustable Throttle Curves & Power Delivery
-
High-Resolution Colour Display
-
IP67 Waterproof & Dustproof Rating
-
1500V Electrical Isolation Protection
-
Advanced Thermal Management System
-
OTA Firmware Updates
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 96V |
| Breakdown Voltage | 138V |
| Peak Power | 76kW |
| Phase Current | 960A (1300A Tested) |
| Battery Compatibility | 12s–26s |
| Operating Temperature | -30°C to 80°C |
| Waterproof Rating | IP67 |
| Cooling Improvement | 28.2% Better than Gen 1 |
| Battery Current | 350A+ Continuous |
| Connectivity | Bluetooth App Control |
| Ride Modes | 5 Programmable Modes |
| Regenerative Braking | 5 Adjustable Levels |
Compatible Bikes
-
Sur-Ron Light Bee
-
Sur-Ron Ultra Bee
-
Talaria MX3 / MX4 / MX5
-
Talaria XXX
-
E-Ride Pro SS & SR
-
79Bike Falcon Series
-
Ventus V1+
-
Rerode R1
-
Other compatible eMoto platforms with the correct harness
Built for serious riders. Engineered for maximum performance. The Ventus Aetos V9600 Gen 2 MAX is the ultimate controller upgrade for high-power eMoto builds.
App Introduction
Free download across multiple platforms
Throttle fine-tuning
Low battery throttling and power auto-tuning
Multiple separate programmable power settings
EBS gear adjustment
keyless entry
E-assist brake
Motor calibration
Speed calibration
Bluetooth password
Power-Off Protection (Brake, Tilt, Stand)

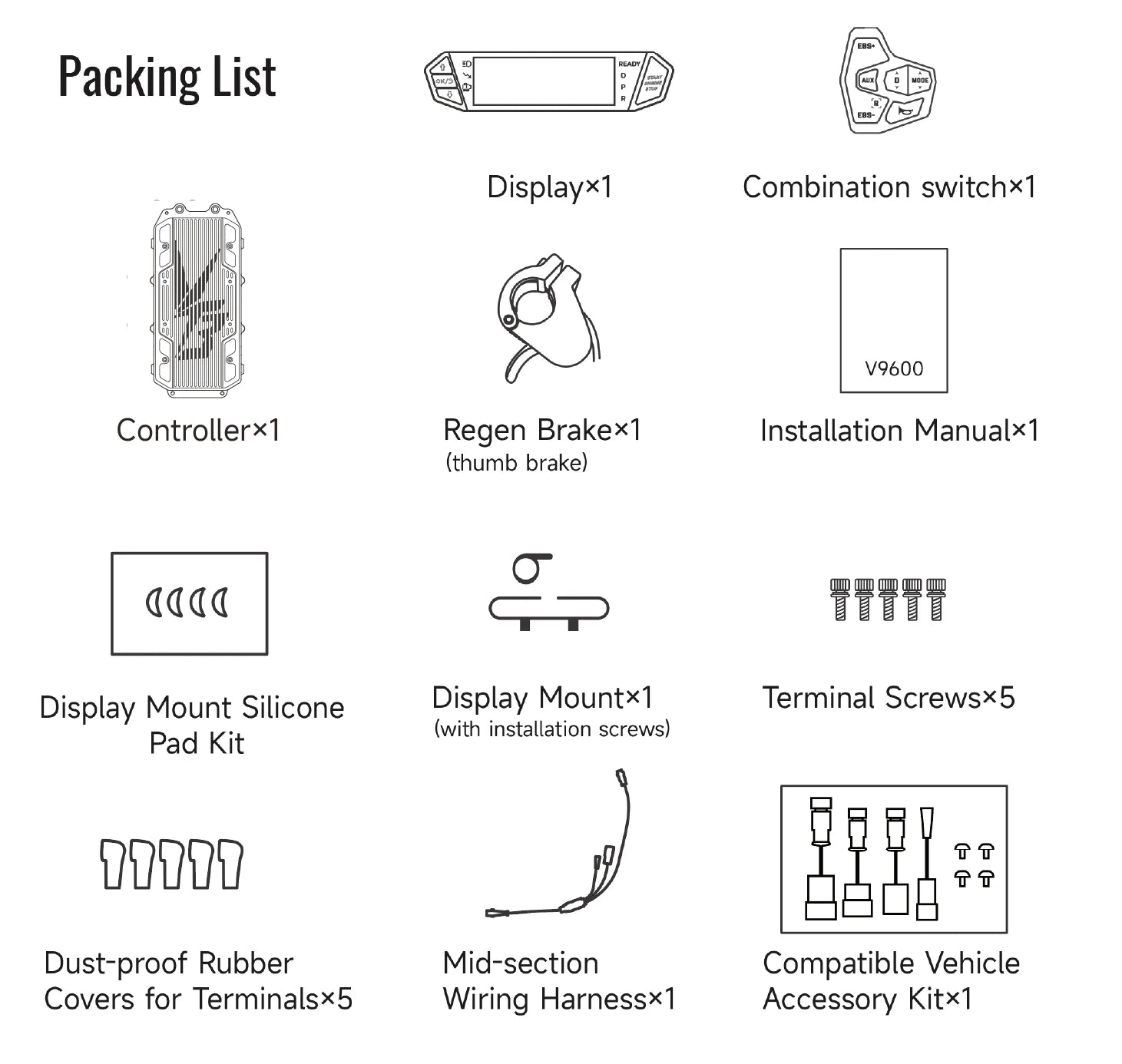

Packing List

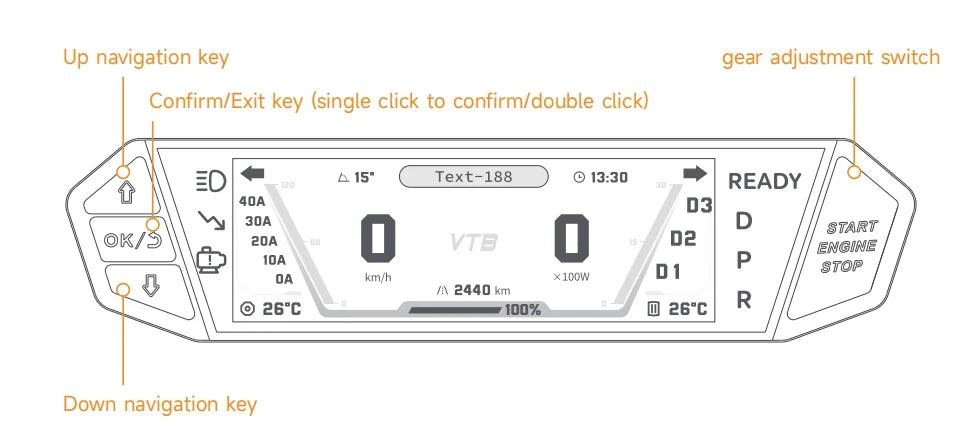

Color Display

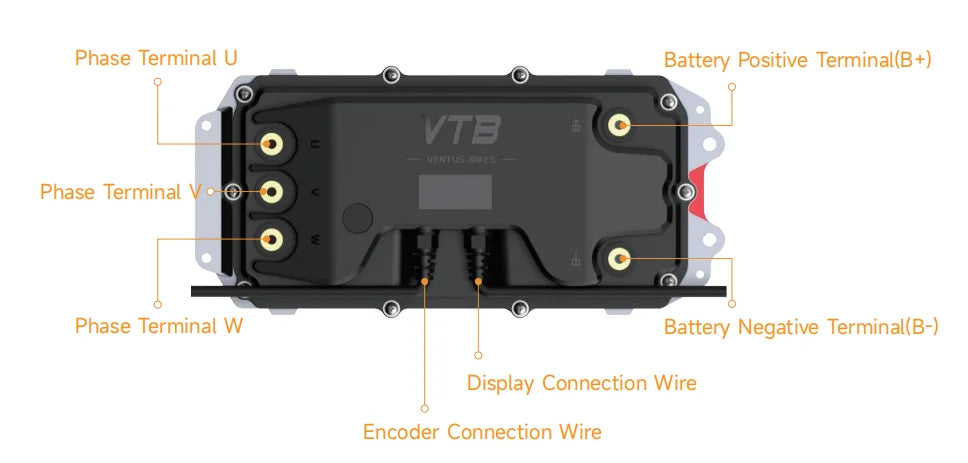

Route Description
Installation Hole Diagram
The installation holes for the Light Bee are indicated by the four positions outlinedin the rectangular frame in the diagram.

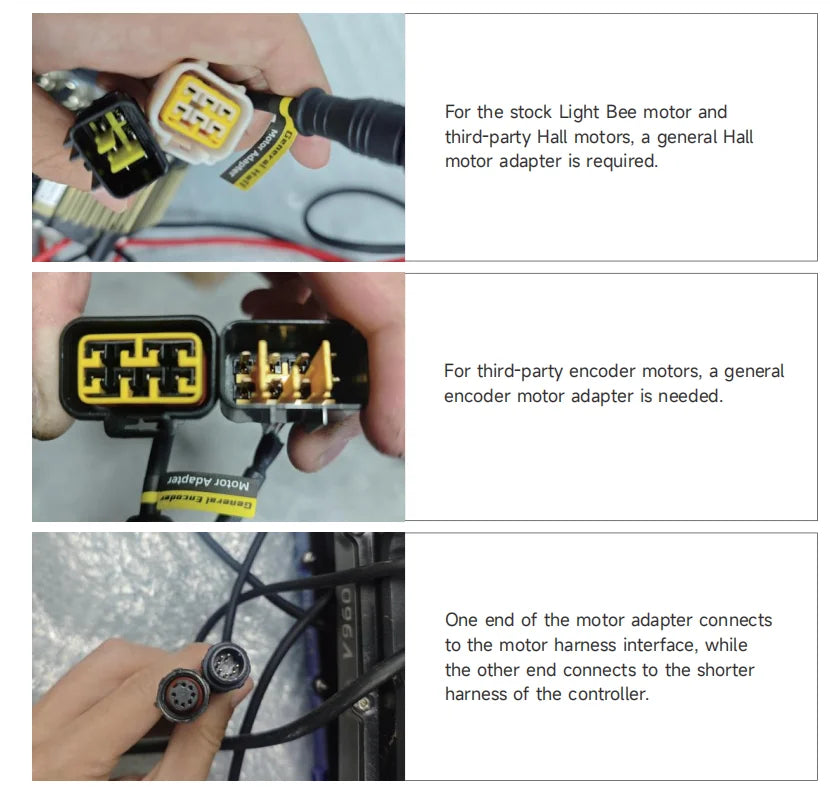

Connecting the Motor Plug
Please choose either the general encoder motor adapter or the general Hall motor adapter for installation based
on specific requirements; only one is needed. VTB is dedicated to providing comprehensive service to our
customers and therefore offers an alternative cable as a backup. We deeply appreciate your support and trust.
The stock VTB motor does not require the use of a motor adapter.
