Ventus Aetos VTB Gen 2 Ultra Controller

Ventus Aetos VTB V9600 Gen 2 Ultra Controller

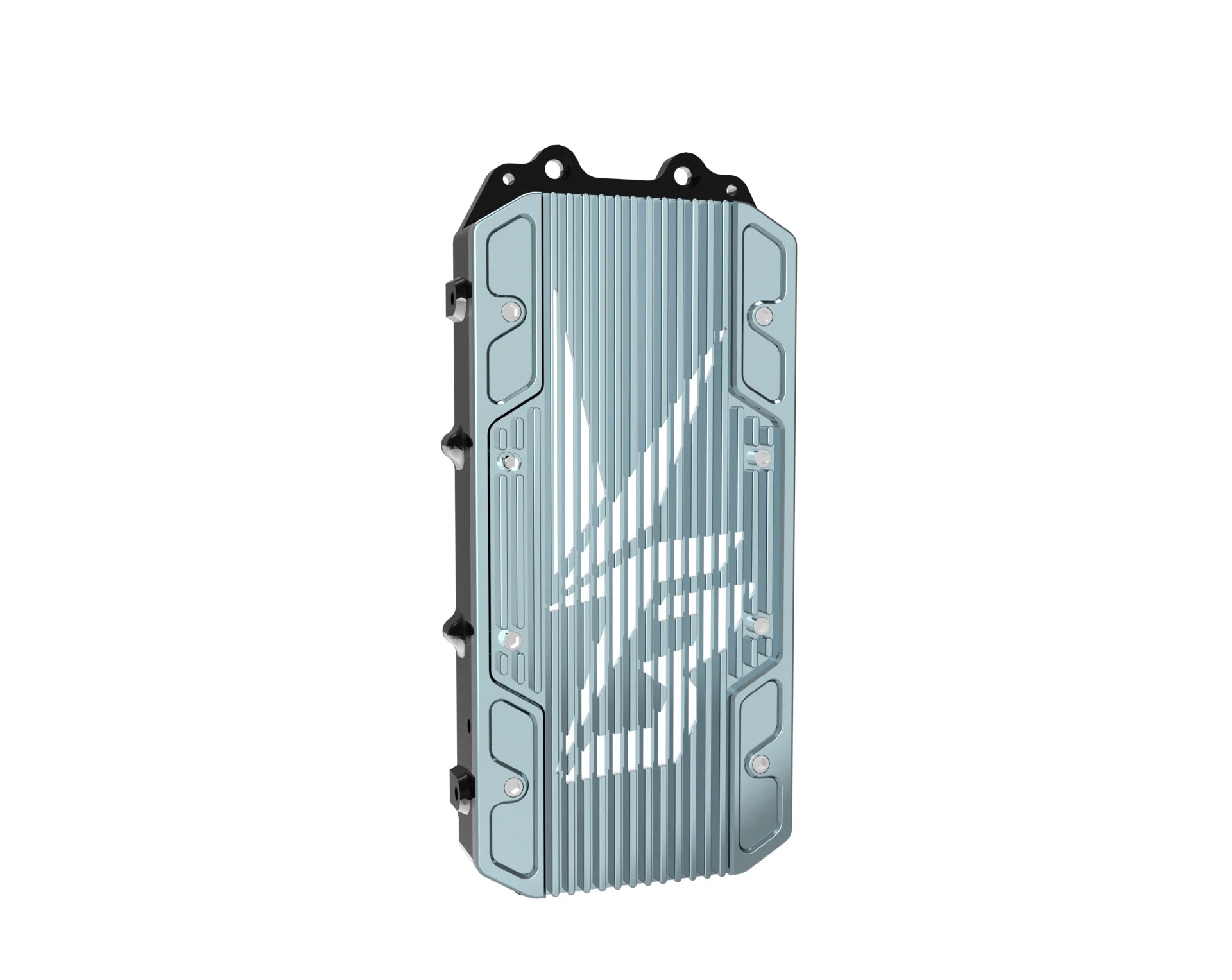

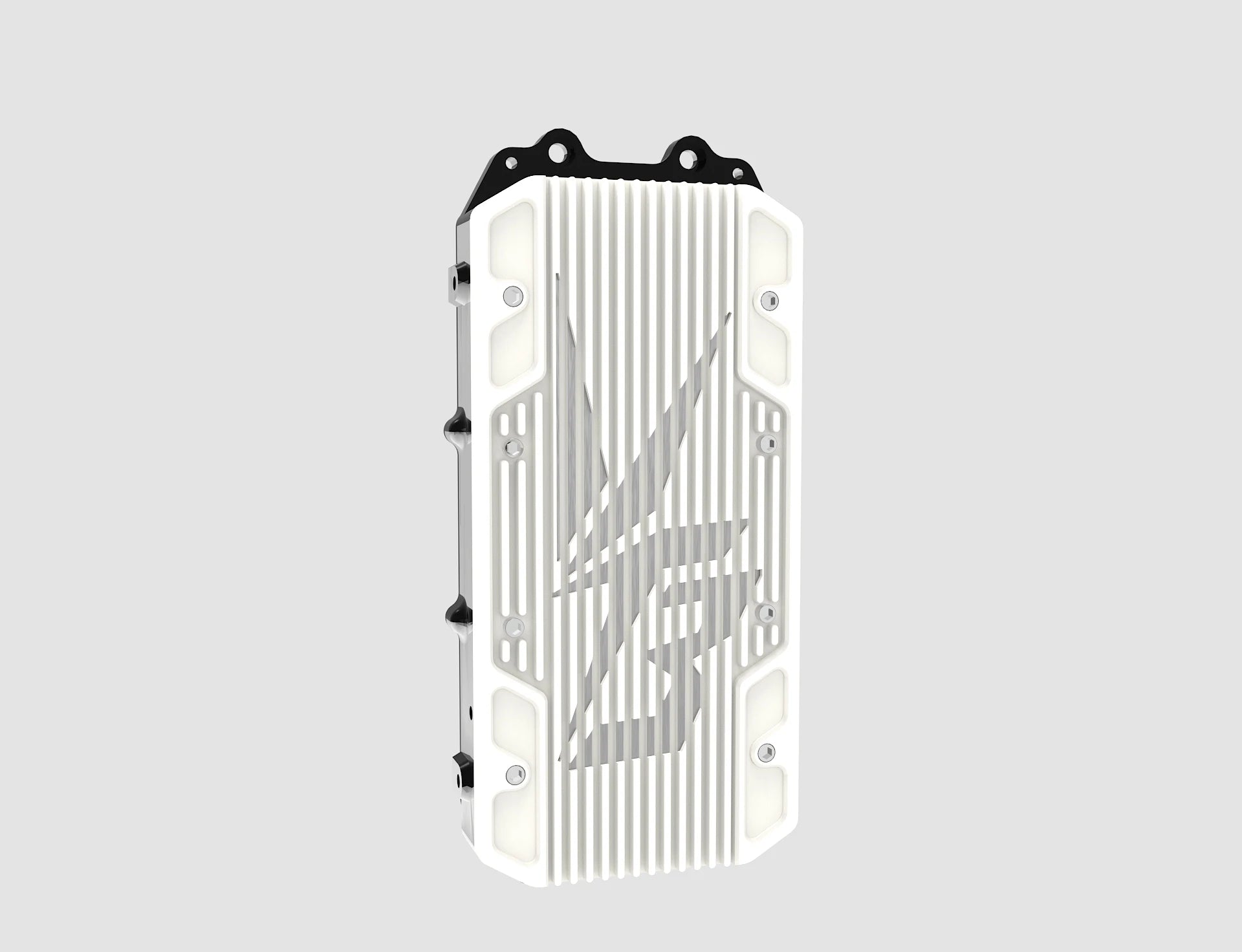

The Ventus Aetos VTB V9600 Gen 2 Ultra is one of the most advanced high-performance eMoto controllers available, designed for riders demanding maximum power, reliability, and tuning capability. Built around Ventus' latest Gen 2 architecture, the Ultra delivers extreme power output, improved thermal management, faster processing, and smoother throttle response for racing, high-performance trail riding, and custom builds.

Featuring a fully sealed IP67-rated housing, OTA firmware updates, Bluetooth connectivity, customizable ride modes, and advanced battery integration, the Aetos Ultra offers complete control over your bike's performance while maintaining exceptional durability in harsh riding conditions.

Key Features

• Advanced Gen 2 VTB control system

• Ultra-fast throttle response

• Bluetooth app connectivity

• OTA (Over-The-Air) firmware updates

• Customizable power maps and ride modes

• Integrated battery and BMS monitoring

• IP67 waterproof construction

• Enhanced cooling and heat dissipation design

• Plug-and-play compatibility with supported eMoto platforms

Specifications

• Model: Aetos VTB V9600 Gen 2 Ultra

• Maximum Voltage: 120V

• Breakdown Voltage: 138V

• Battery Compatibility: 12s–26s

• Peak Phase Current: 960A

• Tested Phase Current Capacity: Up to 1300A

• Maximum Power Output: 72kW

• MOSFET Count: 30 High-Performance MOSFETs

• Waterproof Rating: IP67

• Cooling Performance: 28.2% improvement over Gen 1

• Overcurrent Capacity: 25% improvement over Gen 1

• Operating Modes: EASYGO, ECO, SPORT, RACE, BOOST + custom modes

• Connectivity: Bluetooth & Mobile App Support

• Firmware Updates: OTA Supported

Compatibility
Compatible with supported Surron, Talaria, E-Ride Pro, 79Bike and other eMoto platforms when paired with the correct bike-specific wiring harness.

Built for Serious Performance
Whether you're chasing race-winning acceleration, higher top speeds, or precise power delivery on technical terrain, the Ventus Aetos VTB V9600 Gen 2 Ultra provides the power, tuning flexibility, and reliability required for elite-level electric motorcycle performance.

App Introduction

Free download across multiple platforms

Throttle fine-tuning

Low battery throttling and power auto-tuning

Multiple separate programmable power settings

EBS gear adjustment

keyless entry

E-assist brake

Motor calibration

Speed calibration

Bluetooth password

Power-Off Protection (Brake, Tilt, Stand)

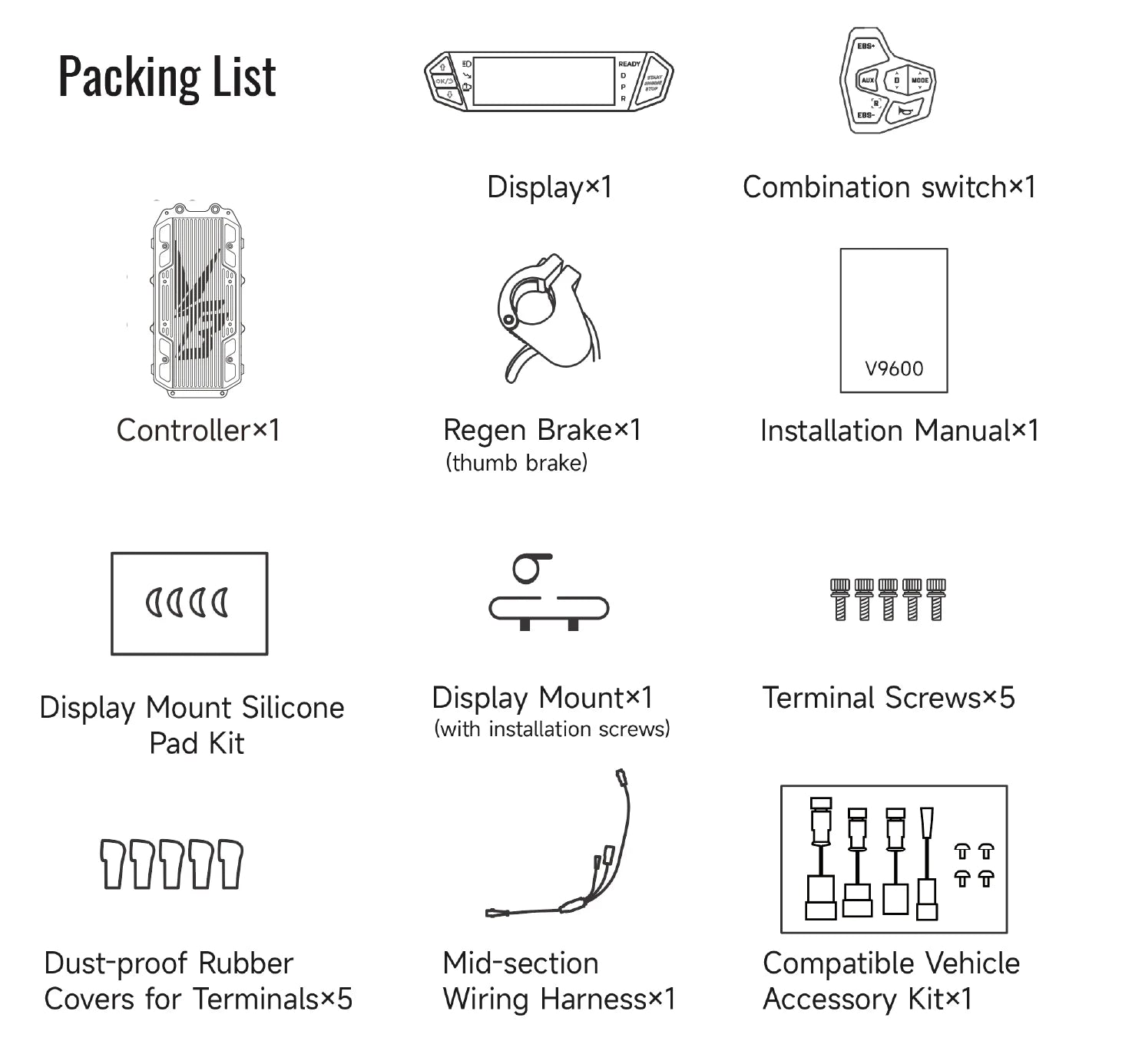

Packing List

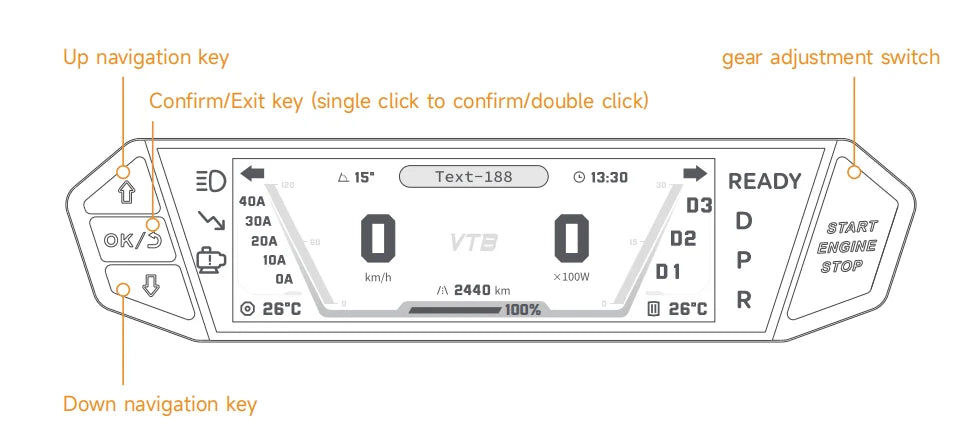

Color Display

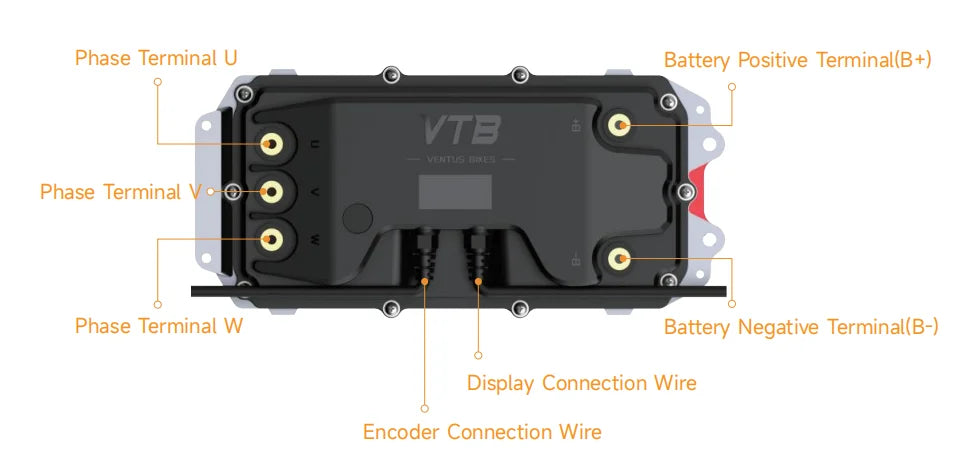

Route Description

Installation Hole Diagram

The installation holes for the Light Bee are indicated by the four positions outlinedin the rectangular frame in the diagram.

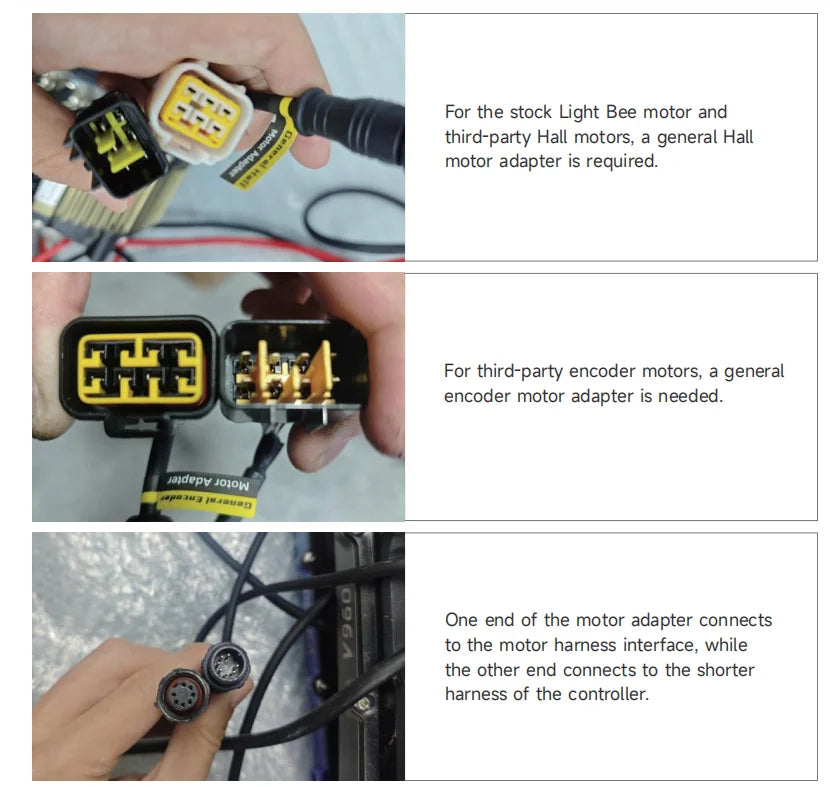

Connecting the Motor Plug

Please choose either the general encoder motor adapter or the general Hall motor adapter for installation based

on specific requirements; only one is needed. VTB is dedicated to providing comprehensive service to our

customers and therefore offers an alternative cable as a backup. We deeply appreciate your support and trust.

The stock VTB motor does not require the use of a motor adapter.
